SP3078EEN-L

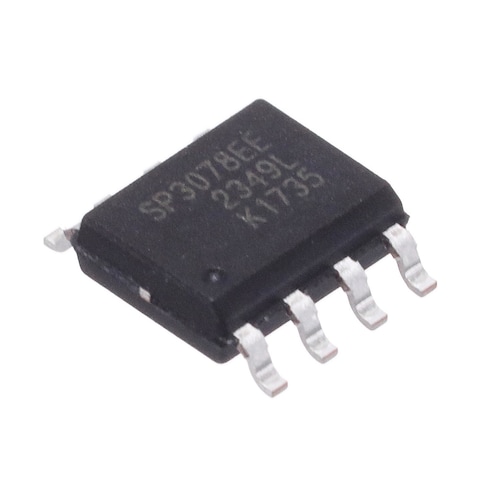

Name: MaxLinear SP3078EEN-L
Brand: MaxLinear
SKU: 701-SP3078EEN-L
Price: 0.78 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

701-SP3078EEN-L

Mfr. No:

SP3078EEN-L

Mfr.:

MaxLinear

Description:

RS-422/RS-485 Interface IC RS485/RS422 Driver/ Receiver Transceiver

Datasheet:

SP3078EEN-L Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about MaxLinear SP3078EEN-L

In Stock: 221

Stock:: 221 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Long lead time reported on this product.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,783 €	0,78 €
	0,558 €	5,58 €
	0,444 €	11,10 €
	0,42 €	41,16 €
	0,398 €	117,01 €
	0,383 €	225,20 €
	0,372 €	401,02 €
	0,358 €	912,18 €
	0,349 €	1 778,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	MaxLinear
Product Category:	RS-422/RS-485 Interface IC
RoHS:
Series:	SP3078E
Mounting Style:	SMD/SMT
Package/Case:	SOIC-8
Function:	Transceiver
Number of Drivers:	1 Driver
Number of Receivers:	1 Receiver
Data Rate:	16 Mb/s
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tube
Brand:	MaxLinear
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Duplex:	Half Duplex
ESD Protection:	+/-15 kV
Input Voltage:	- 7 V to 12 V
Operating Supply Current:	800 uA
Operating Supply Voltage:	3.3 V
Output Current:	250 mA
Output Type:	Differential
Output Voltage:	1.5 V to 3.3 V
Pd - Power Dissipation:	471 mW
Product:	RS-422/RS-485 Transceivers
Product Type:	RS-422/RS-485 Interface IC
Propagation Delay Time:	50 ns, 75 ns
Protocol Supported:	RS-422, RS-485
Shutdown:	Shutdown
Factory Pack Quantity:	98
Subcategory:	Interface ICs
Type:	Transceiver
Unit Weight:	143 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SP3078EEN-L Datasheet

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8542319000
CNHTS:: 8542399000
CAHTS:: 8542310000
USHTS:: 8542390090
KRHTS:: 8542311000
MXHTS:: 8542310399
ECCN:: EAR99

Advanced-Failsafe Transceivers

MaxLinear Advanced-Failsafe Transceivers are suitable for bidirectional communication on balanced multipoint bus transmission lines and comply with both RS485 and RS422 EIA standards. These differential line transceivers consist of a differential driver and a differential receiver. They operate from a 3.3V power supply. MaxLinear Advanced-Failsafe Transceivers feature ±15kV ESD protection for RS485 pins and advanced receiver-failsafe protection for open, shorted, or terminated lines.
