CDEP147NP-1R5MC-95

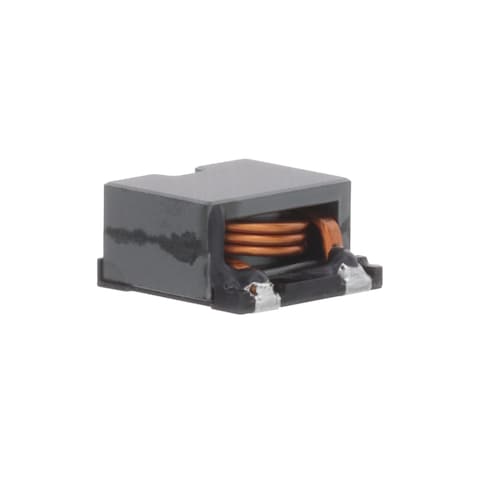

Name: Sumida CDEP147NP-1R5MC-95
Brand: Sumida
SKU: 851-CDEP147NP1R5MC95
Price: 1.66 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

851-CDEP147NP1R5MC95

Mfr. No:

CDEP147NP-1R5MC-95

Mfr.:

Sumida

Description:

Power Inductors - SMD 1.5uH 20A 1.69ohms

Datasheet:

CDEP147NP-1R5MC-95 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 148

Stock:: 148

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 300
Factory Lead Time:: 22

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 300)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,66 €	1,66 €
	1,41 €	14,10 €
	1,09 €	27,25 €
	0,894 €	89,40 €
Full Reel (Order in multiples of 300)
	0,869 €	260,70 €
	0,853 €	511,80 €
	0,828 €	745,20 €
	0,827 €	1 984,80 €
	0,818 €	3 926,40 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Sumida
Product Category:	Power Inductors - SMD
RoHS:
Type:	Power Inductor
Shielding:	Shielded
Inductance:	1.5 uH
Tolerance:	20 %
Maximum DC Current:	20 A
Maximum DC Resistance:	2.02 mOhms
Saturation Current:	27.2 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Termination:	Standard
Length:	14.5 mm
Width:	14.5 mm
Height:	8 mm
Core Material:	Ferrite
Series:	CDEP147
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power
Brand:	Sumida
Core Type:	Wirewound
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mounting Style:	PCB Mount
Product:	Power Inductors
Product Type:	Power Inductors - SMD
Factory Pack Quantity:	300
Subcategory:	Inductors, Chokes & Coils
Termination Style:	SMD/SMT
Unit Weight:	5,300 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

CDEP147NP-1R5MC-95 Datasheet (PDF)

RoHS Certificate (PDF)

TARIC:: 8504500090
CNHTS:: 8504500000
CAHTS:: 8504500000
USHTS:: 8504508000
JPHTS:: 850450000
KRHTS:: 8504502090
MXHTS:: 8504509199
BRHTS:: 85045000
ECCN:: EAR99
