Amphenol Q Microwave Lumped Element Filters
Amphenol Q Microwave Lumped Element Filters feature a robust design, 50Ω characteristic impedance, and a small size. The comprehensive product lineup includes bandpass, lowpass, and highpass filters in a rugged connectorized package. The miniature lumped-element filter capability extends from a frequency range of 20MHz to 20GHz. Typical applications for Amphenol Q Microwave Lumped Element Filters include communications, electronic intelligence and surveillance, and anti-aliasing filters.
Features
- QLB001-CSMA and QLB002-CSMA
- Anti-aliasing
- Low insertion loss
- QLB003-CSMA
- Wideband S- to C-band coverage
- Radar focused
- QLL004-CSMA
- Lowpass filter
- Rejections beyond C-band
- Hermetic package
- QLL005-CSMA
- Lowpass filter
- Rejections beyond S-band
- QLL006-CSMA
- Lowpass filter
- Rejections beyond L-band
- QLH007-CSMA, QLH008-CSMA, and QLH009-CSMA
- Highpass filter
- Broadband
- Common
- Rugged connectorized package
- 50Ω characteristic impedance
- Robustness
- Small size
Applications
- Anti-aliasing filters
- Communications
- Electronic intelligence and surveillance

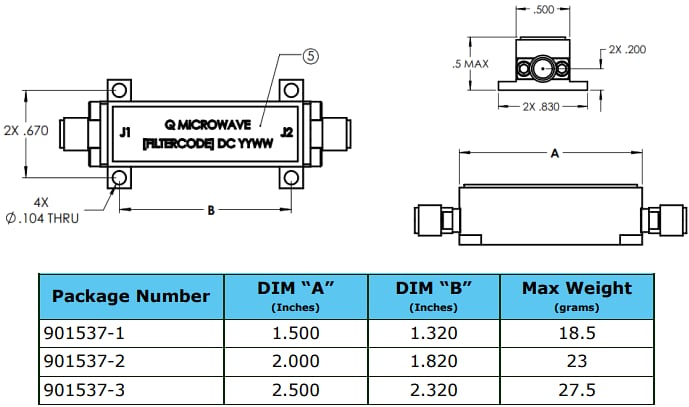

Dimensions
Published: 2025-04-03
| Updated: 2025-08-14
