ams OSRAM DURIS® S 5 Horticulture LEDs

ams OSRAM DURIS® S 5 Horticulture LEDs offer a range of purple, neutral white, and cool white illumination colors in a white surface mount package with a colored diffused silicone resin. The LEDs have a 120° viewing angle (at 50% Iv), operate at -40°C to +100°C temperature range, and offer a +125°C junction temperature. The DURIS® S 5 LEDs are ideal for horticultural and architectural lighting applications.

Features

  • White SMT package with colored diffused silicone resin
  • 120° (Lambertian emitter) typical radiation
  • 4kV ESD acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3A)
  • 120° viewing angle at 50% Iv
  • -40°C to +100°C temperature range
  • +125°C junction temperature (TJ)

Applications

  • Horticulture lighting
  • Architecture

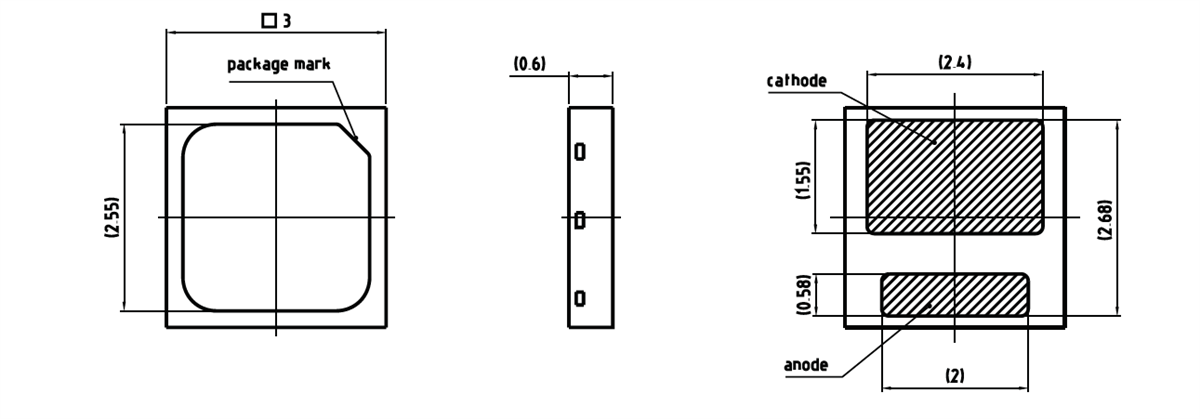

Dimension Diagram

ams OSRAM DURIS® S 5 Horticulture LEDs
