Lumileds LUXEON 2835 CrispColor Technology™ LEDs
Lumileds LUXEON 2835 CrispColor Technology™ LEDs are designed for fashion retail lighting that highlights rich colors and increases contrast. These LEDs employ special phosphor technology that creates a higher gamut color rendering than existing solutions with a specific color. The LUXEON 2835 LEDs with CrispColor technology creates a highly impactful retail experience and operates at low voltage and high driving current. These LEDs feature industry standard footprint for drop-in replacement designs. Typical applications include downlights, indoor area lighting, and lamps.
Features
- Solid state lighting technology
- Special phosphor technology
- Good reliability
- Lower voltage
- Higher driving current
- Industry standard footprint for drop-in replacement designs
- 240mA maximum drive current allows for reduction of LED count
- 3- and 5-step MacAdam ellipse color kits available
Specifications
- 240mA DC forward current
- 300mA peak pulsed forward current
- 125°C LED junction temperature (DC & pulse)
- Class 2 ESD sensitivity
- 5V reverse voltage (Vreverse)
- 3 allowable reflow cycles
- -40°C to 105°C operating case temperature
- -40°C to 105°C LED storage temperature
Applications
- Fashion retail lighting
- Downlights
- Indoor area lighting:
- TLEDs
- Troffers
- Lamps

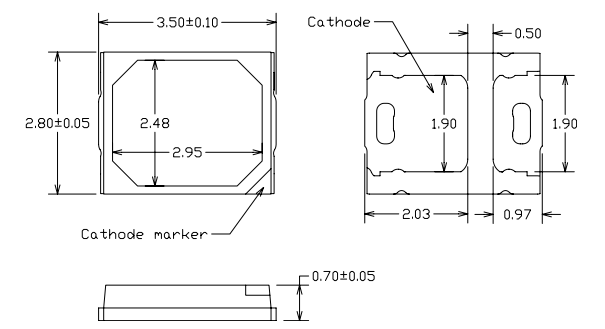

LUXEON 2835 LEDs Mechanical Dimensional Drawing
Lumileds LUXEON 2835 LEDs
Lumileds LUXEON 2835 LEDs
Designed for performance with high-lumen output and good efficiency for a variety of applications.
