Taiwan Semiconductor HS1xAL & HS2xAL Surface Mount Rectifiers

Taiwan Semiconductor HS1xAL and HS2xAL Surface Mount Rectifiers feature low power loss, fast switching, and high efficiency. The HS1xAL and HS2xAL Rectifiers are in a compact, thin SMA package, ideal for automated placement. These devices are available in 200V, 400V, 600V, 800V, and 1000V ratings, with a junction temperature range of -55°C to +150°C. The Taiwan Semiconductor HS1xAL and HS2xAL Rectifiers have a level 1 moisture sensitivity rating and are RoHS-compliant, Pb-free, and Halogen-free. Typical applications for these devices include switching mode converters, inverters, and telecommunications.

Features

  • Glass passivated junction chip
  • Ideal for automated placement
  • Low power loss, high efficiency
  • Molding compound meets UL 94V-0 flammability rating
  • Moisture sensitivity level 1, per J-STD-020
  • Pure tin-plated leads, solderable per J-STD-002
  • Meets JESD 201 class 2 whisker test
  • -55°C to +150°C junction temperature range
  • Low profile thin SMA package
  • RoHS-compliant
  • Halogen-free according to IEC 61249-2-21

Applications

  • Freewheeling applications
  • Switching mode converters and inverters
  • Computers
  • Telecommunications

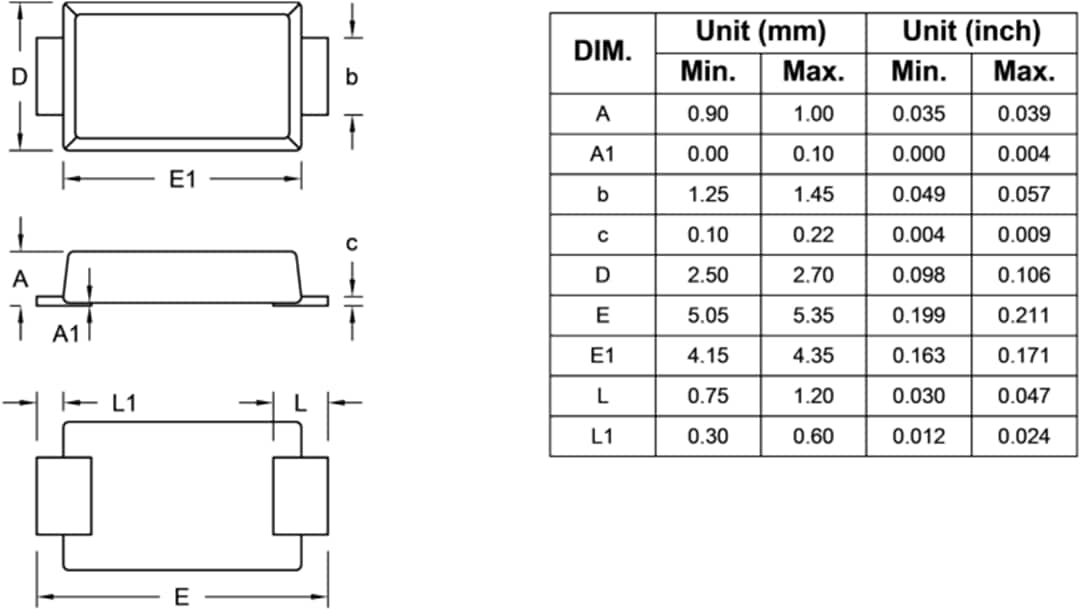

Package Outline

Taiwan Semiconductor HS1xAL & HS2xAL Surface Mount Rectifiers
